Searching what is an axle shaft, you will find it is the metal rod that transfers rotational energy from the differential to a wheel to make it spin. It is frequently used to hold some weight of the vehicle, and needs to resist twisting, impact, and side loads during cornering. Since it is at the end of the drivetrain, a failed axle shaft appears as either noise, vibration, or absence of power. That makes it both simple and essential. Most reports put the wider axle and propeller shaft market near USD 36.5 billion in 2024, and project it could climb toward about USD 48.6 billion by 2034, which is roughly a 3 percent annual growth rate. If you isolate axle shafts, one solid estimate pegs that market at about USD 1.6 billion in 2024 and expects it to reach roughly USD 2.0 billion by 2031, growing close to 3.5 percent a year.
How the axle shaft fits into the drivetrain

The engine power passes via a handful of connections and then reaches the road:
Engine – transmission – driveshaft (on many rear drive cars) – differential – axle shafts – wheels.
The differential splits engine torque and distributes it to both car axles of the differentials. The axle shafts fit into the differential and connect to the wheels hubs. In front-wheel-drives, the axle usually has flexible joints to allow the wheel to steer and swing with suspension travel. Most designs support the axle shafts inside a housing with bearings and seals so the shaft stays aligned and the grease stays where it belongs.
Types of axle shafts and when they are used

There are different axle types for different vehicles. Some of the most common axle shafts include.
Semi-floating axle:
The axle bolts directly to the wheel hub. It carries torque plus bending loads. You find this design on many passenger cars because it is compact and economical.
Three quarter floating axle:
A compromise design that reduces some bending stress compared to a semi-floating axle. Three quarter floating axles are rare these days, but you still see them on a few older or specialist vehicles.
Full-floating axle:
The wheel rides on a hub supported by bearings. The axle only transmits torque and does not carry vertical load. This is the strongest layout and is common on medium and heavy duty vehicles.

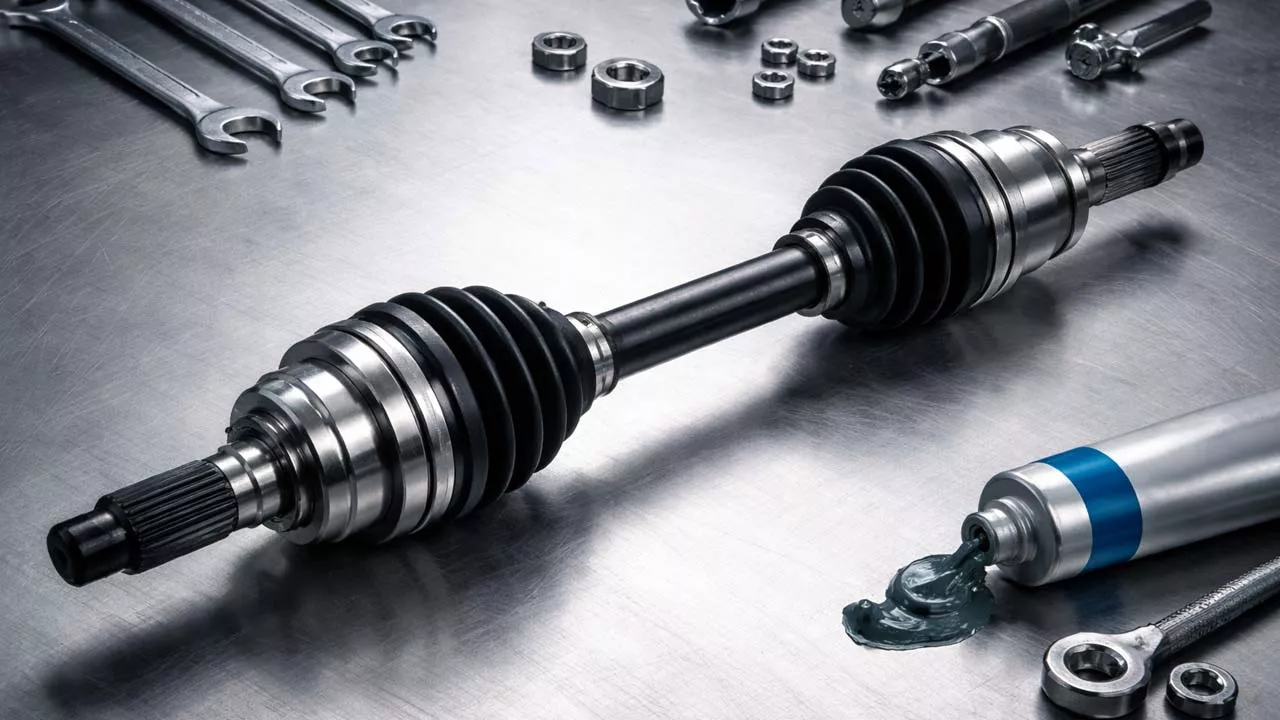

CV axle (constant velocity axle):
This is an axle shaft with CV joints at one or both ends. If you’re wondering what a half shaft is, it’s usually just another name for a CV axle – the shaft that runs from the differential out to one wheel. CV joints let the shaft transmit power while the wheel turns and the suspension moves. You see CV axles on front-wheel-drive, many all-wheel-drive cars, and ATVs.
Drive axle shaft and rear axle shaft:
In rear-wheel-drive vehicles the rear axle shaft carries torque from the differential to the rear wheels. In some contexts you will also see the term drive axle shaft used to describe the loaded axle that both drives and supports the wheel.
How an axle shaft works

The differential turns the shaft. The shaft turns the hub. The hub turns the wheel. When the axle has joints, those joints let the shaft bend and rotate at variable angles while staying connected to the wheel. The whole assembly must rotate smoothly while withstanding torque, impacts, and side loads from cornering. When you get this right, the driving becomes a fun experience, especially while cornering hard on a curvy road.
If you compare CV axle and axle shaft you’re really comparing a form factor. A CV axle vs axle shaft discussion explains that a CV axle is an axle shaft fitted with CV joints so it can handle steering and suspension movement while transmitting torque.
Signs of a bad axle shaft

Pay attention to these symptoms:
- Clicking or popping noises when turning, especially at low speed. This often points to a worn outer CV joint.
- Vibration that grows worse with speed. A bent or damaged shaft can cause this.
- Grease or black grime around the tire or wheel edge. A torn CV boot leaks grease and lets dirt in.
- Sudden loss of drive or trouble controlling the vehicle. A broken axle can cause a severe safety issue.
If you hear clicking when you turn, get it inspected sooner rather than later. You can replace a torn CV boot or the axle shaft assembly before the joint fails completely. Replacing a failed CV axle costs more than replacing a boot early.
Common causes of axle shaft damage

- Torn CV boots that allow grease to escape and contaminants to enter the joint.
- Hard impacts from potholes, curbs, or collisions that bend or crack the shaft.
- Repeated heavy loads, towing, or off-road use that exceed design limits.
- Wear from age or manufacturing faults such as poor heat treatment or surface defects. Studies of broken shafts point to fatigue and tiny surface defects as the usual culprits, and they recommend better inspections and tougher heat treatment to cut down on failures.
Quick FAQs
An axle transfers torque from the differential to a wheel and may also help support vehicle weight in some designs.
A driveshaft transfers power from the continuously variable transmission (or others) to the differential on many rear drive vehicles. An axle shaft carries torque from the differential to an individual wheel.
You might limp a short distance but it is unsafe. Clicking, strong vibration, or sudden loss of drive are signs to stop and get help.
With intact boots and normal driving many last for years. Harsh use, torn boots, or impacts shorten life. Regular inspection helps catch problems early. When buying, it’s worth checking out vehicles with solid track records, like dependable Fords, dependable Chevrolets etc., which are built with durable drivetrains.
Typical ranges run from a few hundred dollars up to over a thousand dollars depending on vehicle and parts. Labor is a separate cost.
